ATI AT1820 SERIES

מפרט טכני

Remote Trigger-Activated from 3.3VDC to 24VDC
Protection Circuits -Optically – coupled with full automatic reset.

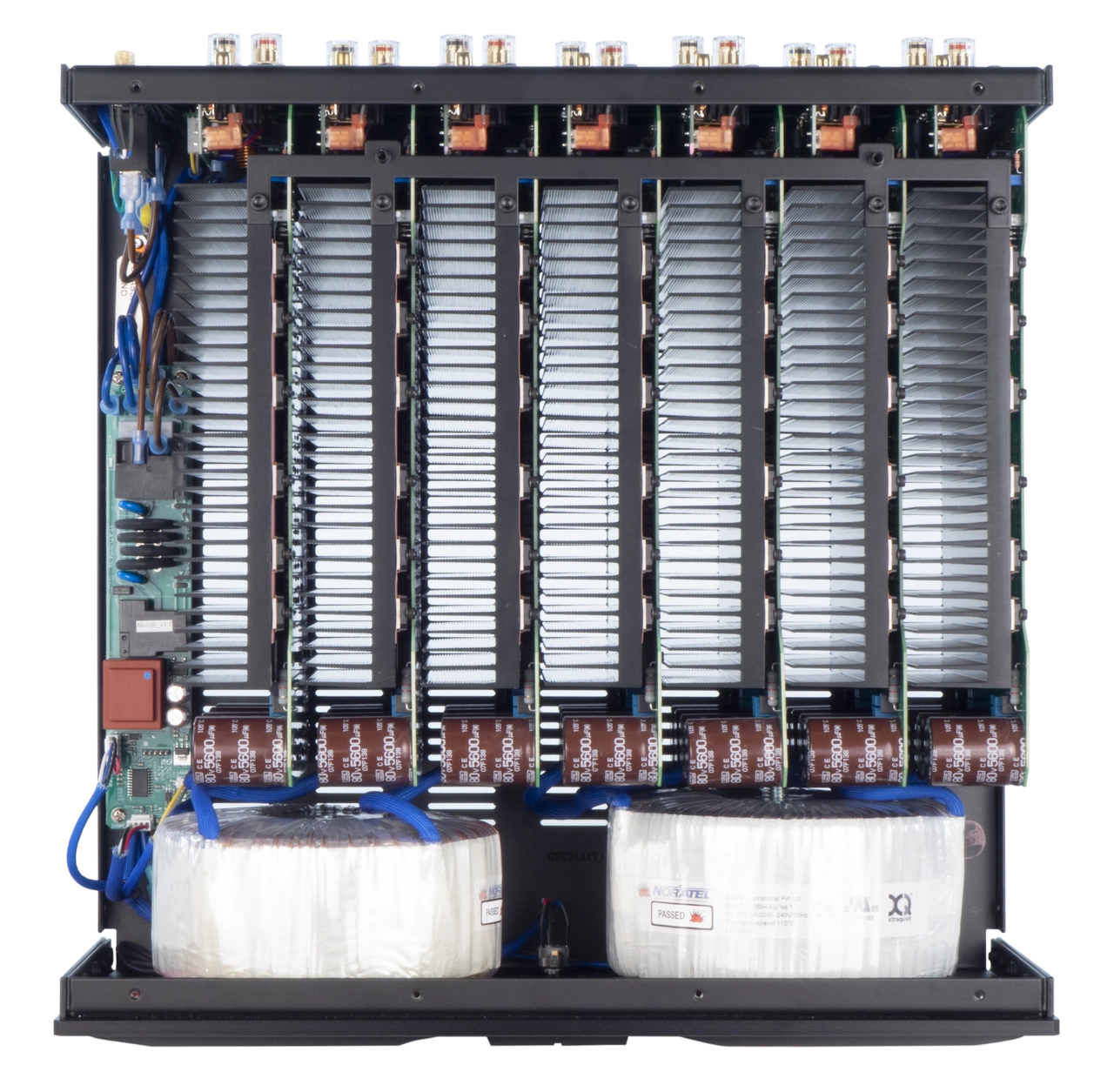

Toroid Transformers-40% more efficient than EI type. Separate bi-filar windings for each channel guarantee lower noise and crosstalk.
Circuit Boards-Double-sided FR-4 glass epoxy, computer-grade boards are assembled in California.
Soft Start Circuitry-Soft-start minimizes in-rush current. Multiple units can be turned on without tripping circuit breakers, eliminating the need for turn-on sequencing.
Power Transistors-High current, bi-polar output transistors ensure optimized performance in real time.
Power Supply Capacitance -22,400uF per channel.
Power Cord -Detachable, 3-wire power cord.
7-Year Warranty -Parts and labor against defects in parts or workmanship.
Numbers of Channels - 2-7
FTC Full Bandwidth Power Output@ 8Ω (Watts RMS) -200W
FTC Full Bandwidth Power Output@ 4Ω (Watts RMS) -300W
Input Sensitivity for Full Rated FTC Output Power - 8Ω -1.6 Volts
Frequency Response -+0, -.5dB, 5Hz to 20kHz, load independent
Signal-to-Noise Ratio (Ref FTC Rated Power, A-Wtd)->120dB (A-weighted - Ref. 8Ω FTC Power)
Total Harmonic Distortion + Noise (20Hz - 20kHz) -<0.03%
Intermodulation Distortion- <0.03%
Recommended Load Impedance-8Ω Nominal, Stable into 4Ω
Damping Factor->400 from 10Hz to 400Hz
Crosstalk->-100dB from 20Hz to 20kHz
Voltage Gain (RCA Inputs)-28.5dB ±0.5dB
Voltage Gain (XLR Inputs)-27.5dB ±0.5dB
Slew Rate-> 50V / μS
Input Impedance-28 kΩ Nominal
Output DC Offset-<±15mV
Power Requirements-230V; 50/60 Hz
Power Consumption (Standby)- ≤0.5W (240 VAC)
Power Consumption (Idle)-240VAC; 50/60 Hz

Chassis Dimensions (W x H x D) mlllimeters

AT1822-AT1824: 432 x 196 X 372
AT1825-AT1827: 432 x 196 x 448
Net Weight (lbs/kg)

AT1827: 95.2/43.3
AT1826: N/A
AT1825: 77/35
AT1824: N/A
AT1823: 52.1/23.7
AT1822: 44.25/20.1
